20A Emi Filitre
503,33 TL
*503,33 TL den başlayan taksitlerle!
 |
|
|
||||||||||||||

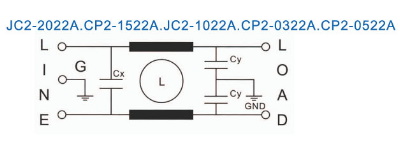

 CIRCUIT |
|||||||||||||||
 |
|||||||||||||||

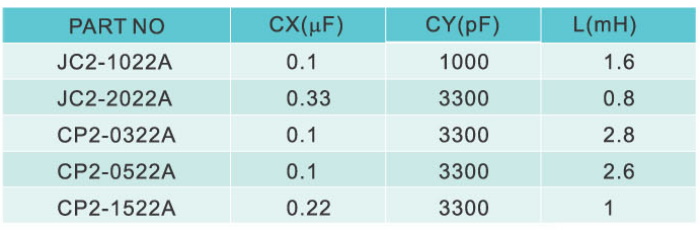

| COMPONENTS |
|||||||||||||||
 |
|||||||||||||||
| SPECIFICATIONS |
|||||||||||||||
|
|
1. Maximum Leakage Current Each Line to Ground @115VAC 60Hz: 0.25mA (1000) @250VAC 60Hz: 0.5mA (1000) 0.4mA (3300) 0.75mA (3300) 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60Hz 4. Rated Voltage: 115/250VAC 5. Temperature Range: -25℃ To +85℃ HPF |
||||||||||||||

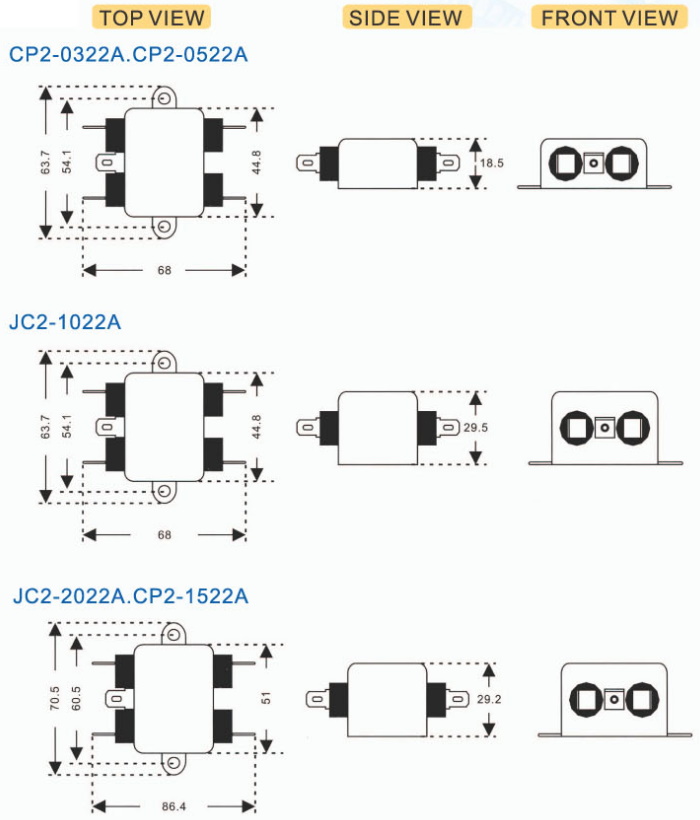

| DIMENSION UNIT:mm |
|||||||||||||||
 |
|||||||||||||||

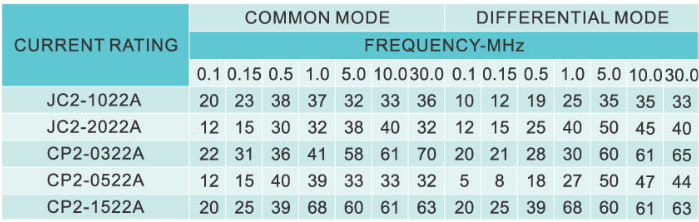

| NOISE ATTENUATION |
|||||||||||||||
 |
|||||||||||||||
