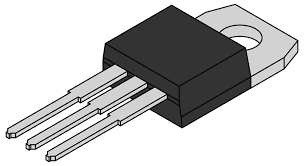

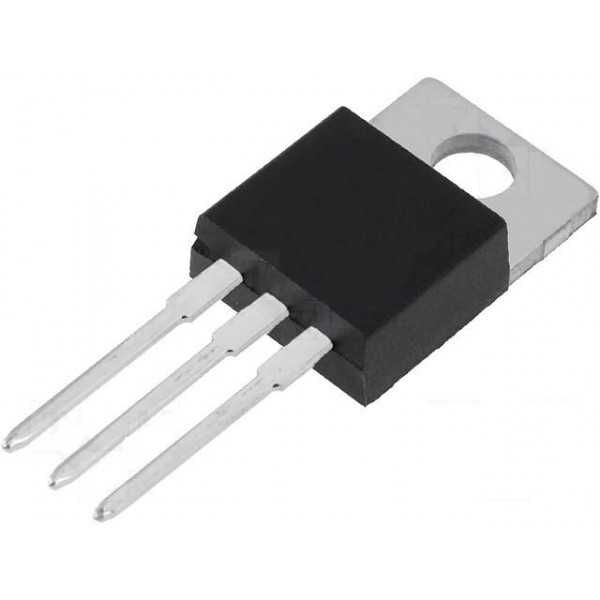

BD241C Transistörü NPN 3 A 100 V THT TO-220
15,67 TL
*15,67 TL den başlayan taksitlerle!
Technical specifications
| Version | NPN | |
| Enclosure | TO-220 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 115 V | |
| max.voltage between collector and emitter Vceo | 100 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 3 A | |
| Saturation voltage | 1.2 V | |
| Transit frequency fTmin | 3 MHz | |
| Power dissipation | 40 W | |
| Collector current | 3 A | |
| Min DC gain | 10 mA |
