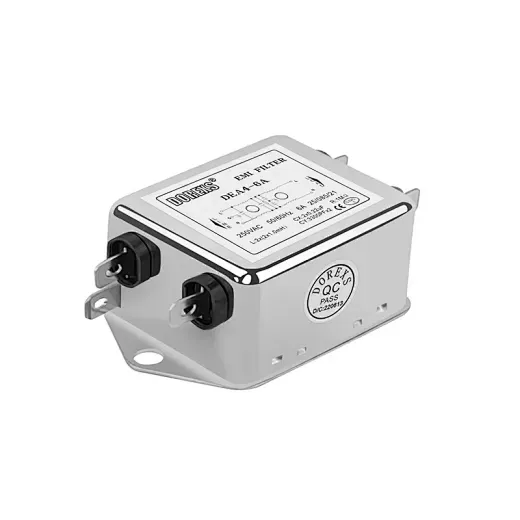

DEA4-Insert 3A-20A Single Phase High Performance AC Noise Filter
0,00 TL
Fiyat
0,00 TL + KDV
Stok Kodu
BHL6SWYZTR
DEA4 AC noise filter is designed to selectively eliminate noise signals within a specific frequency range, with strong high-frequency interference suppression capability, providing clean power for electronic equipment.
DEA4 AC noise filter consists of inductors and capacitors. The maximum current can reach 20Aand the maximum voltage can reach 250VAC. It adopts a two-stage filter design with excellent differential and common mode interference suppression characteristics. DEA4 is a high-performanceAC noise filter. Suitable for industrial automation equipment, medical equipment, communication equipment, etc.
DEA4 AC noise filter consists of inductors and capacitors. The maximum current can reach 20Aand the maximum voltage can reach 250VAC. It adopts a two-stage filter design with excellent differential and common mode interference suppression characteristics. DEA4 is a high-performanceAC noise filter. Suitable for industrial automation equipment, medical equipment, communication equipment, etc.
Key Features
- Rated current up to 20A
- Bolts, inserts, rails and other connection methods are available
- Differential Mode and Common Mode Interference Characteristics
- Optional low leakage current version
- Optional medical version
- Customized versions of appearance and parameters can be provided on demand
- Comply with cUL, CE, ROHS, CQC related safety certifications
Technical Specifications
|
Specification
|
Details
|
|
Model：
|
DBA4-Insert
|
|
Application：
|
Industrial / Commercial
|
|
Phase：
|
Single-phase
|
|
Structure：
|
Two-stage
|
|
Max operating voltage：
|
275VAC
|
|
Rated Current：
|
10A - 30A
|
|
Leakage Current：
|
≤ 0.5mA
|
|
Withstand voltage level：
|
2150VAC
|
|
Frequency Range：
|
50/60Hz
|
|
Operating Temperature：
|
-25°C ~ +85°C
|
|
Certifications：
|
UL, CQC, CE
|
|
Dimensions (mm)：
|
92 × 51 × 30 (W×H×D)
|
|
Weight(g)：
|
100
|
|
Connection Type：
|
Bolt/Insert/Power cord
|
