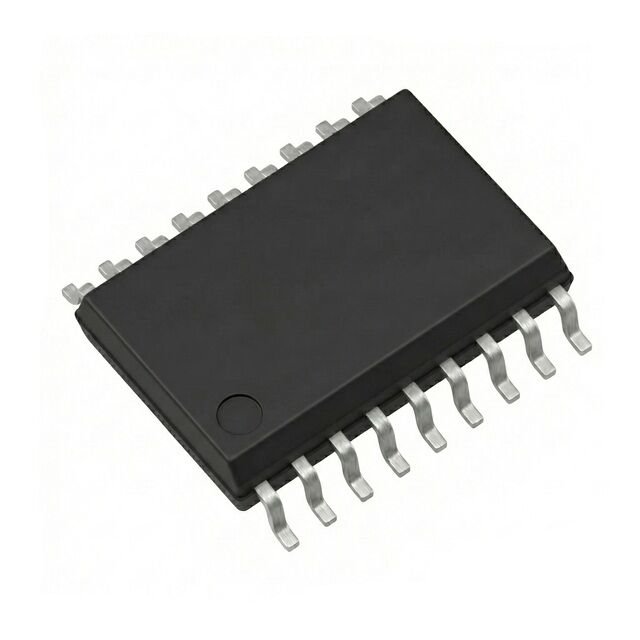

ULN2803AFWG SOP-18 8 DARLINGTON ARRAY INTERFACE IC
15,54 TL
*15,54 TL den başlayan taksitlerle!
Darlington transistor, ULN2803A
The ULN2803A contains eight Darlington transistors with common emitters and integral suppression diodes for inductive loads.
Technical specifications
| Version | NPN | |
| Enclosure | PDIP-18 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 50 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated current | 500 mA | |
| Saturation voltage | 1.3 V | |
| Collector current | 500 mA | |
| Min DC gain | 1000 mA |
